2023-2026 Powerstroke FSP Commuter 3.5" Leveling Kit (CS-FLVL-COM-CS-23-FSP)

Description

Fits

Year	Make	Model
2023 - 2026	Ford	F-250 Super Duty
2023 - 2026	Ford	F-350 Super Duty

These shocks have been valved for Full Progressive Leaf Spring Packs

The perfect comprehensive suspension setup for your Powerstroke, with front linear-rate coil springs that tighten when cornering and react consistently throughout any compression range, making them more responsive and predictable. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways.

REQUIRED Add-Ons:

• Sway Bar Options: CS-FSBD-LVL-1723 or CS-FELKIT-LVL-20 or CS-FTSB-LVL-17
• Rear Leaf Spring Options: CS-FPAP-LVL-17 or CS-FFSP-LVL-17 or CS-FFSP-LVL-17-HD

Note: Find optional add-ons in the additional information section below.

Part Number: CS-FLVL-COM-CS-23-FSP

Features

• Improved handling and stability
• Carli-Tuned corrosion-resistant 2.0 IFP shocks
• Valved specifically for use with Carli Full Progressive Spring Packs

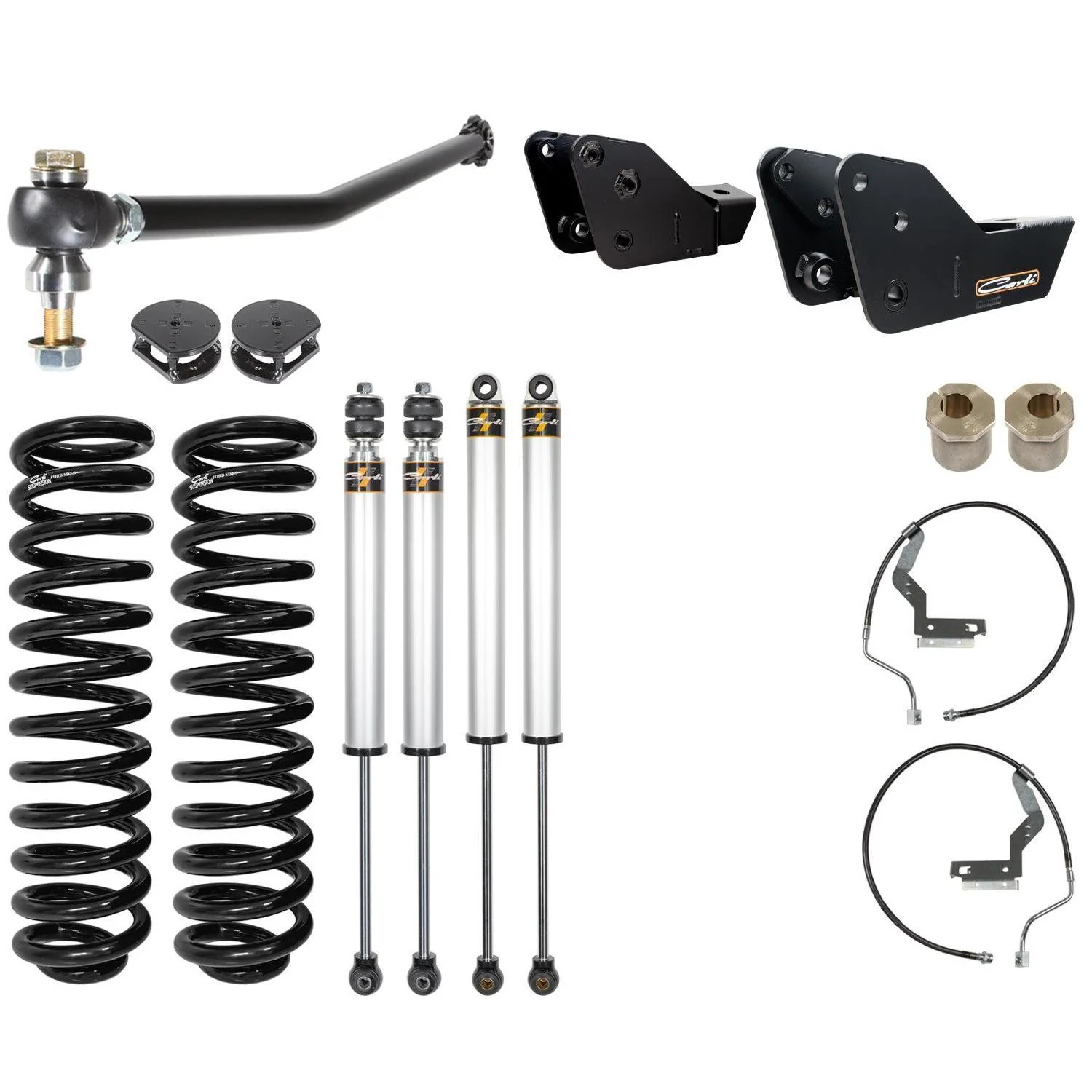

• Linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims, radius arm drop brackets, and adjustable track bar
• Increases wheel travel to 9" front and 13" rear
• Fits up to 37" tires with ease for a more aggressive appearance and better off-road performance

Additional Info

• Required and Optional Parts to support this system:
  • Leaf Spring Shackle (OPTIONAL): CS-FSHACKLE-11
  • 2° Pinion Shim (OPTIONAL): CS-FPSKIT-3X2
  • Adjustable Radius Arms (OPTIONAL): CS-FARA-LVL-23

  • Steering Stabilizer - High mount (OPTIONAL): CS-FHMSS-17
  • Steering Stabilizer - Low mount (OPTIONAL): CS-FLMSS-23
  • Trophy Hitch (OPTIONAL): CS-FHITCH-1723

Notes

• NOT RECOMMENDED for use with stock leaf springs or Carli Progressive Add-a-Packs
• 3.5″ Lift – 2023-2026 F250/350 4×4 Diesel

• 1.5″ Lift – 2023-2026 F250/350 TREMOR
